Contact Us
BZDDM-X160-Y160-R30-AOIMJ
BZDDM-X160-Y160-R30-AOIMJ

BZDDM-X160-Y160-R30-AOIMJ

Mainly used in automotive electronics, display testing (digital tube, LCD screen, LED display), medicine, food, precision parts processing, size measurement, product positioning and other fields. After the product runs to the corresponding position, the purpose is to measure, count, detect and intelligently determine XYR superimposed structure, no core linear motor direct drive control, no grooving effect, smooth operation at low speed (low speed fluctuation) DD end runout is less than 2um After assembly, the overall plane runout of the platform is less than 10um Full stroke repeatability is less than ±1um The positioning accuracy is less than ±2um

Email

cathy@bzd-linearmotor.com

Inquiry Now
Related Product
  • Product Detail
  • Technical parameter
  • Product characteristics
  • File Download

  • Mainly used in automotive electronics, display testing (digital tube, LCD screen, LED display), medicine, food, precision parts processing, size measurement, product positioning and other fields. After the product runs to the corresponding position, the purpose is to measure, count, detect and intelligently determine



    XYR superimposed structure, no core linear motor direct drive control, no grooving effect, smooth operation at low speed (low speed fluctuation)
    DD end runout is less than 2um
    After assembly, the overall plane runout of the platform is less than 10um
    Full stroke repeatability is less than ±1um
    The positioning accuracy is less than ±2um

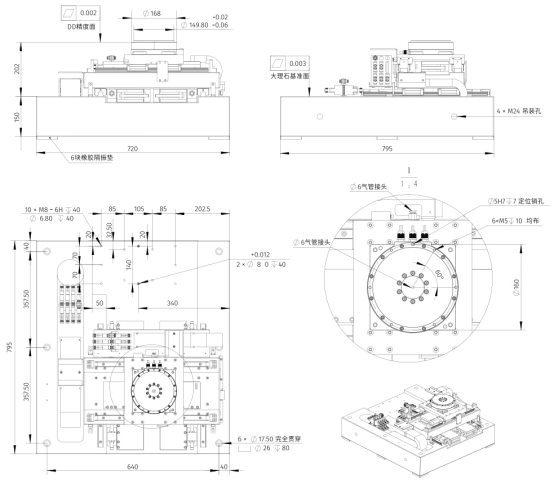

  • Platform typeBZDDM-X160-Y160-R30-AOIMJ
    Axial directionX-axisY-axis (dual motor)r-axis
    Motor typeZWU-60A-1ZWU-60A-2ZWD170
    Sustained thrust170N326.8 N5N.m
    Peak thrust850N1649 N14 N.m
    Sustained current4.1 Arms4.0 Arms1.4 Arms
    Peak current20.7 Arms20.0 Arms4.2 Arms

    Mechanical parameter

    ShaftingX-axisY-axisr-axis
    Effective stroke160160±15°
    loadDD+5kgX+DD+5kg5kg
    Speed1m/s1m/s120 rpm
    Acceleration1G1G-
    Pause time---
    Repeatability±1um±1um±1.5 arc sec
    Positioning accuracy±2um+2um+3 arc sec
    Straightness±2 um±2um-
    Flatness±2um±2um-
    End shift--±2 um
    Global plane runout10 um
    Installation modelevel

  • Product characteristics

    High precision, high stability direct drive structure design

    Non-contact high precision grating ruler

    XY adopts high precision linear guide rail

    Travel, size and cable can be customized according to customer requirements

    Equipped with non-contact high-precision grating ruler, with very good

    Dynamic performance, positioning accuracy and repeated positioning accuracy

    Structural characteristics

    XYR superimposed structure, no core linear motor direct drive control, no grooving effect, smooth operation at low speed (low speed fluctuation)

    DD end runout is less than 2um

    After assembly, the overall plane runout of the platform is less than 10um

    Full stroke repeatability is less than ±1um

    The positioning accuracy is less than ±2um

    Customization

    Can be configured according to customer needs, travel, load,

    Special structures are evaluated and customized
