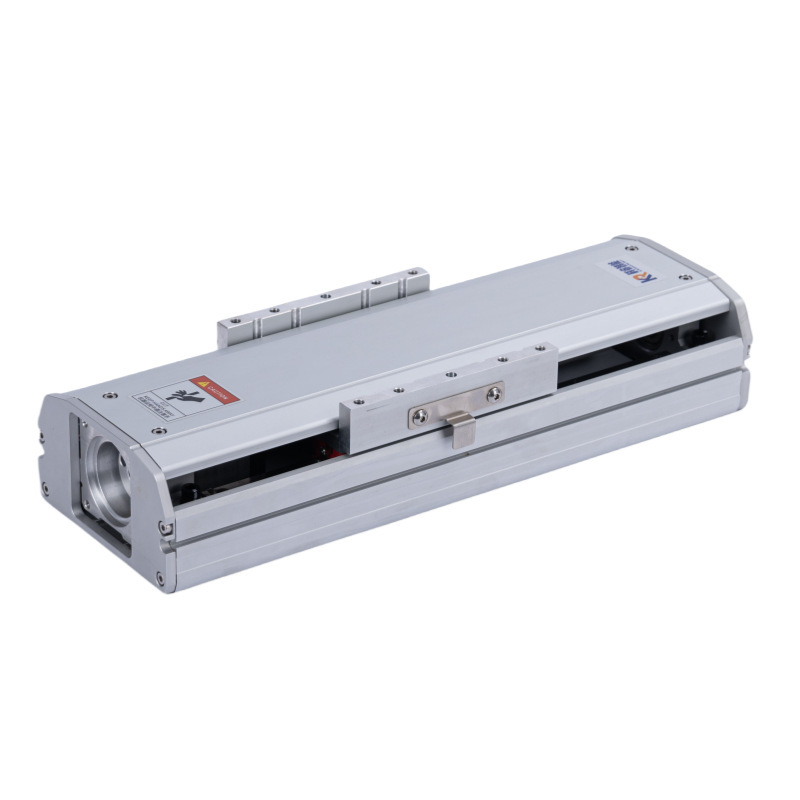

DMS30-CR Dust-Free Environment Using Screw Module
Series products are completely closed screw structure, light weight, good rigidity, dustproof design; It has the characteristics of fast response, short positioning time, good dynamic performance and high rigidity. This series has complete specifications, including DMS30, DMS45, DMS62, DMS65, DMS85, DMS100, DMS135, DMS150, DMS170, DMS220 series.
- Product Detail
- Technical parameter
- Product characteristics
- File Download
-
Series products are completely closed screw structure, light weight, good rigidity, dustproof design; It has the characteristics of fast response, short positioning time, good dynamic performance and high rigidity. This series has complete specifications, including DMS30, DMS45, DMS62, DMS65, DMS85, DMS100, DMS135, DMS150, DMS170, DMS220 series.

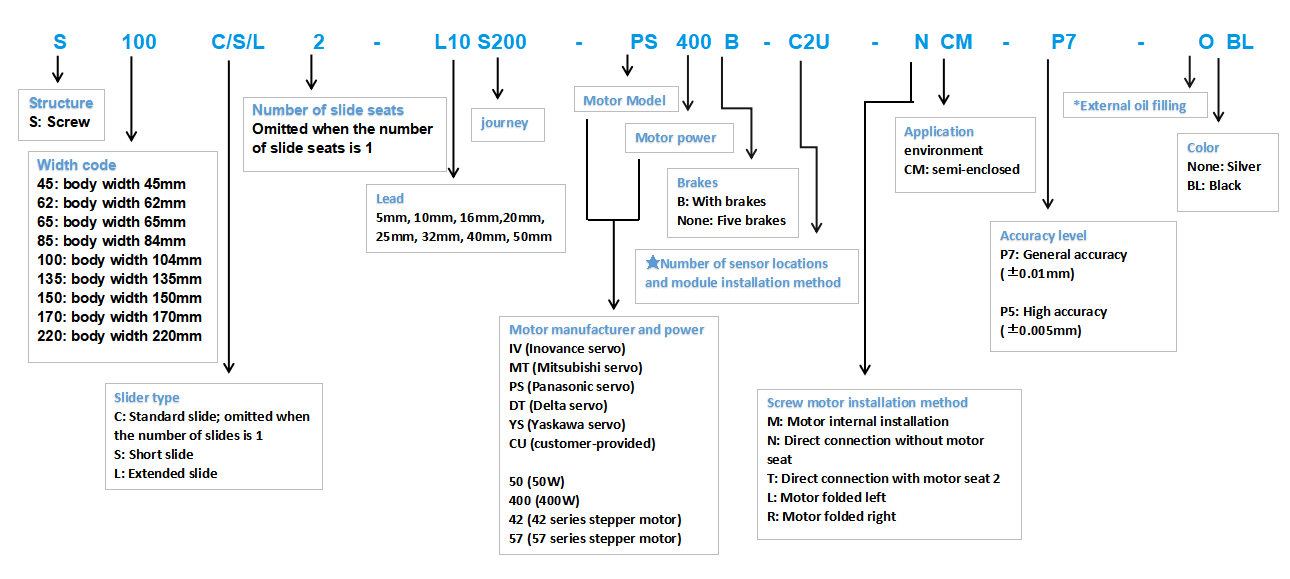

DMS-CM Series Quick Selection Table
Origin switch position Limit switch position Limit number of switches Inductor type Module installation mode Built-in 1 1个 No NPN U Frontal countersunk hole mounting A Motor side B Motor side 2 2个 P PNP D Back screw mounting B Inverse motor side B Inverse motor side ※ When the number is 2, it means that the limit switch is installed on both sides, and the limit switch position is none;
If there is no limit switch, the limit switch position is none.External C Motor side C Motor side D Inverse motor side D Inverse motor side N sensorless no Unlimited switch Motor Matching List

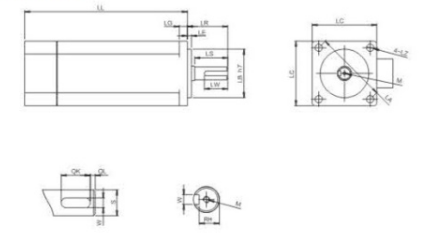

Outline dimension of motor
Power
W
Brand Model number

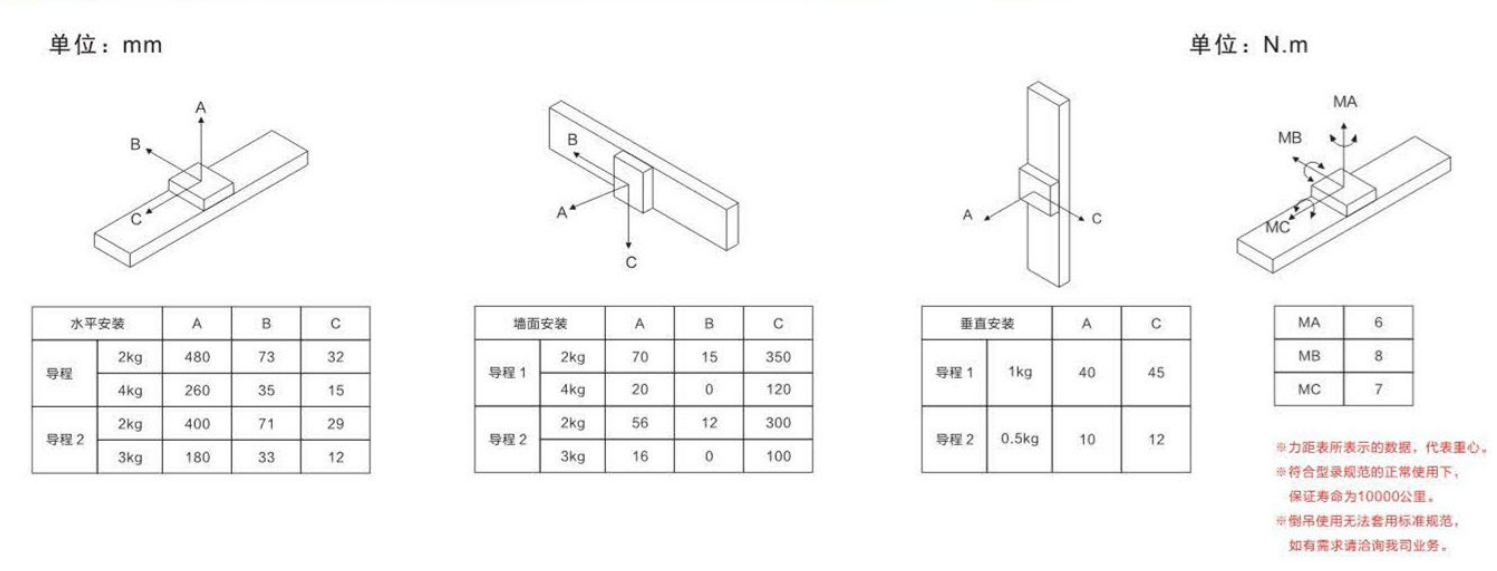

LL LL brake LA LE LZ LC LG LW RH W LR S LB M 30W YASKAWA SGMMV-A3□2A□1 C: There are brakes 1: No brake 54 78.5 28 2.5 M3 25 - 10 4.5 3 16 5 20 - Allowable Load Torque Table
-
Motor Power AC(W) 30
Repeated positioning accuracy (mm) ±0.01/±0.005
Ball screw Outside diameter (mm) 8
Ball screw lead (mm) 1
2
Maximum speed (mm/sec)
Motor speed 3000(rpm)50
100
Maximum load (kg) Acceleration and deceleration Horizontal use 0.3G 4
3
Vertical use 0.3G 1
0.8
★ Rated thrust (N) 72/108
36/54
Linear guide (mm) 14×5.2-1
Origin inductor EE-SX674(NPN)EE-SX674P(PNP) ★The rated thrust is the thrust at the rated torque of the motor; the mass that can be moved and the maximum speed vary depending on the conditions of use;

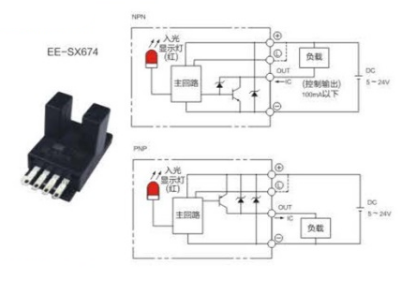

The maximum motor speed is 3 0 0 0 rpm.Inductor Wiring Diagram
Motor External Dimensions
-
Basic parameters:
Standard motor: Step 28, servo 30W
Position repetition accuracy: ±0.01mm
Lead of lead screw: 1, 2mm
Speed ≤100mm/s
Movable weight: horizontal use ≤4kg; Vertical use ≤1kg
Standard effective stroke: 50~400mm/(50 interval)
