Solution
FP Gantry (Fixed Portal Gantry)

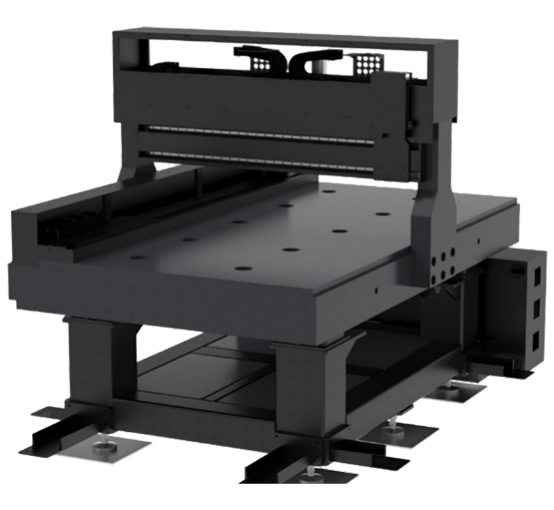

LED wick testing platform ZWDM-G5
Suitable for large panel lamp wick inspection industry
Product Features
Precision linear guide
Coreless motor
High speed stability
Taking into account large travel, high precision, heavy load
Large detection format
Can customize a variety of models from small generation to large generation
Structural characteristics
Gantry structure, high stability
Low abbe error
The platform has compact structure and strong driving ability
Customization
Can be configured according to customer needs, travel, load,
Special structures are evaluated and customized
Product parameter
| Platform type |
ZWDM-G5 |
||||
| Axial direction | X0 axis | Y0 axis | Y1 axis | ZO axis | Z1 axis |
| Load | 30 kg | 12 Kg | 40 kg | 30 kg | 12 kg |
| Positioning accuracy | +/- (3+L/250) um | +/- 15 um | +/- 10 um | 12 mmMinimum | 12 mmMinimum |
| Journey | 2050 | 1400mm | 194mm | - | - |
| Straight axis length | 3140 mm | mm | mm | - | - |
| Length of slide | 890 mm | 230 mm | mm | - | - |
| Resolution | 5 nm or better | 0.1um or better | 0.1um or better | 0.2 um | 0.2 um |
| Acceleration | 0.5G(Average)@66.7% Jerk | 0.5G (Average)@66.7% Jerk | 0.25G (Average)@66.7% Jerk | 50 mm/sec^2 | 50 mm/sec^2 |
| Speed | 1000 mm/s(Max) | 1000 mm/s (Max) | 500 mm/s (Max) | - | - |
| Velocity fluctuation | 0.2%Max@Velocity=400mm/s | - | - | - | - |
| Repeated positioning accuracy | +/-1um | +/-1 um | +/-1 um | +/-1um | +/- 0.1 um |
| Vertical straightness | +/-15 um | +/-10 um | +/- 12 um over fullrange | - | - |
| Horizontal straightness | +/- 2 um over200mm+/- 15 um over full range | +/-10 um | +/- 10 um | - | - |
| Setting time | 200 msec @ 0.2ump-p | 200 msec @0.2ump-p | 200 msec @0.2ump-p | - | - |
| XOY0 is orthogonal | 20um p-p | - | - | ||

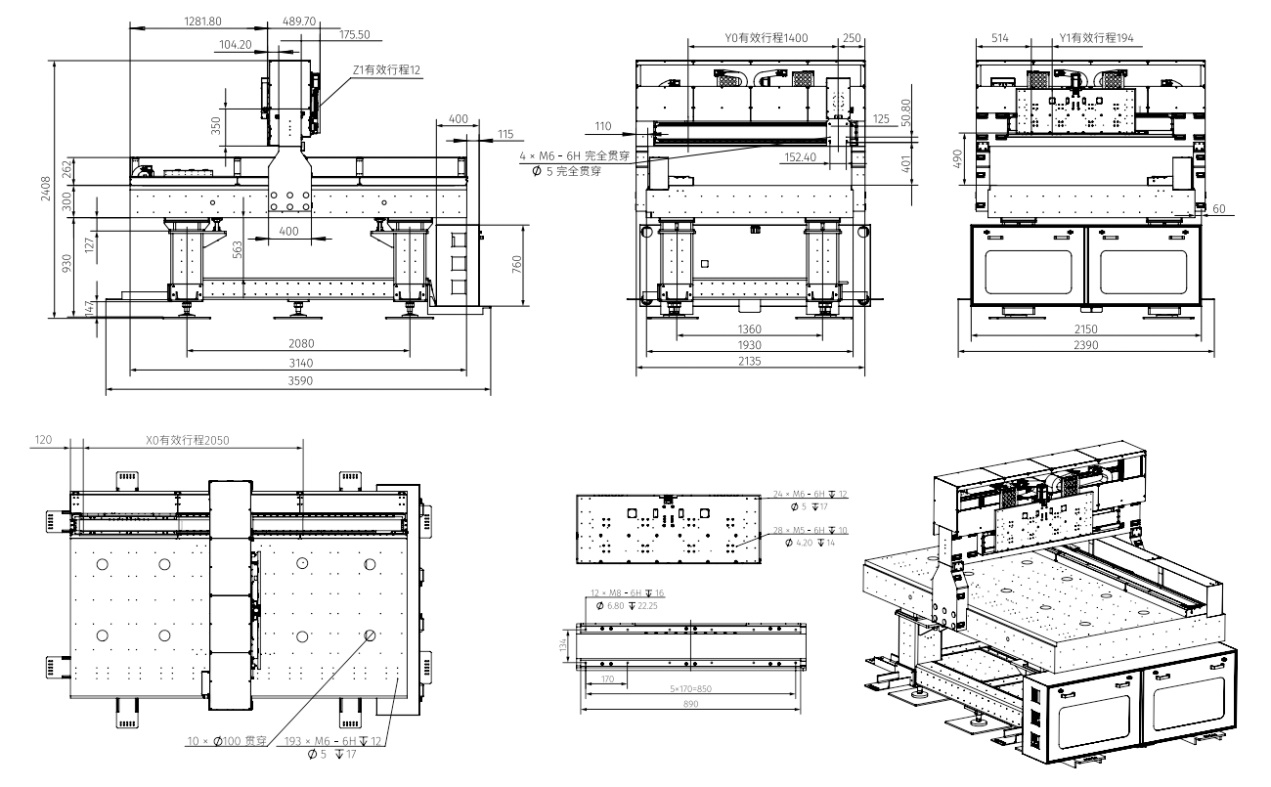

Overall dimension

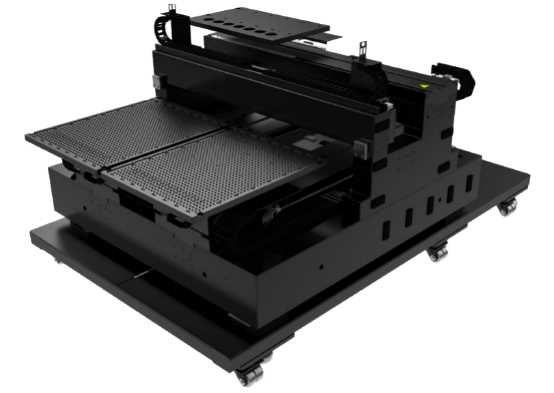

PCB Board LDI Exposure Platform
zwsw-k1195-x900-2y1350-z20
Product characteristics
High precision, high stability direct drive structure design
Non-contact high precision grating ruler
Adopt high precision linear guide rail
Travel, size and cable can be customized according to customer requirements
Structural characteristics
Seven axis LDI exposure machine, all using coreless linear motor
Direct drive control, no grooving effect, smooth operation at low speed (speed Small degree fluctuation)
At the same time equipped with non-contact high-precision grating ruler, with very
Excellent dynamic performance, positioning accuracy and repeated positioning accuracy
High precision grating position feedback is selected for seven-axis LDI exposure machine
The full stroke repeatability is less than ±1.5um
Positioning accuracy is less than ± 2.5um
Generally work with high-precision lifting axis (Z axis)
Customization
Can be configured according to customer needs, travel, load,
Special structures are evaluated and customized
Product parameter
| Platform type |
ZWSW-K1195-X900-2Y1350-Z20 |
|||
| Shafting | X-axis | Y1/Y2 axis | Z1/Z2 axis | K-axis |
| Journey | 900 mm | 1350 mm | 20 mm | 1195 mm |
| Load | 120 kg | ≥55KG Z-axis weight | ≥ 55KG | 3(side hanging) |
| Encoder resolution | 0.1um | 0.1um | 20um | 0.1 um |
| Minimum step | 0.5 um | 0.5 um | 0.5 um | |
| Linear positioning accuracy | ±2.5 um | +2.5 um | ±15 um | ±2.5 um |
| Two-way repeatability | ±1.5um | ±1.5 um | ±8 um | ±1.5 um |
| Horizontal straightness | ±8 um | ±5 um | ±5 um | ±10 um |
| Vertical straightness | ±12 um | ±12 um | ±5 um | ±10 um |
| Yaw | 5 arc sec | 5 arc sec | 20 arc sec | ±15 um |
| Pitch | 10 arc sec | 10 arc sec | For points 300mm away from the center in the X and Y directions, the maximum error in the Z direction is ±30um during the 20mm movement of the Z axis | - |
| Roll | 10 arc sec | - | - | ±10 um |
| Yaw | ±2.5 arc sec/50mm | - | - | - |
| Pitch | ±5 arc sec/50mm | - | - | - |
| Y1Y2, X perpendicularity | 4.1 arc sec(converted to dial gauge runout 10um) | - | - | - |
| Y1, Y2 parallelism | - | ±3μm | - | - |
| Maximum speed | 500 | 500 mm/s | 15 mm/s | 500 mm/s |
| Maximum acceleration | 5000 mm/s2 | |||
| ±0.5um Setting time of the position threshold | <0.1/50mm<0.1/700mm500mm/s0.5G acceleration,50000 acceleration, under load | <0.1S/1mm<0.1S/500mm | - | <0.1/50mm<0.1/700mm500mm/s,0.5G acceleration,50000 acceleration, hanging load |
| Velocity stability | - | <1%(50-500mm/s) | - | - |
| K-axis Y-axis perpendicularity | - | - | - | 4.1 arc sec(converted to dial gauge runout 10um) |

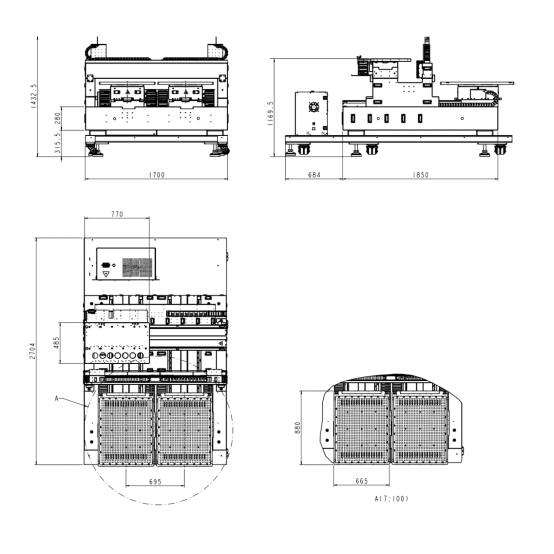

Overall dimension
