Product Features

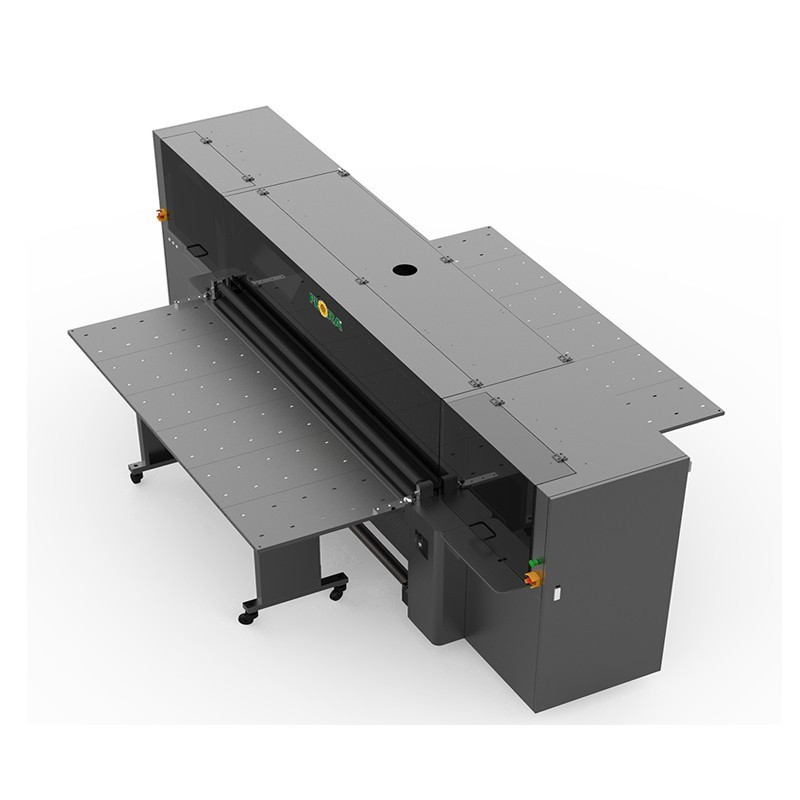

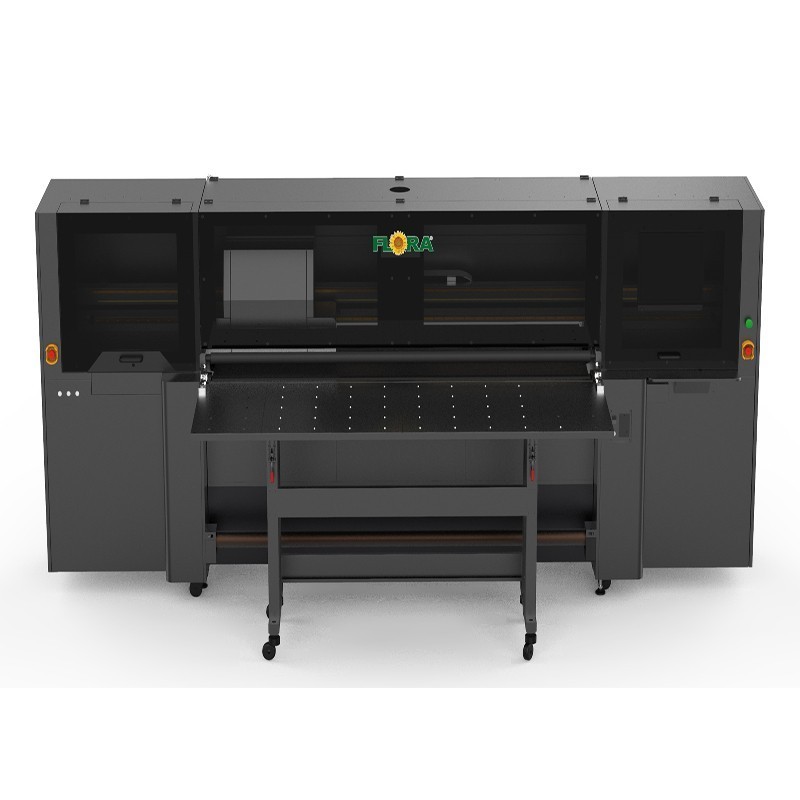

Flora X20uv
FLORA hybrid UV printer
Using grayscale inkjet head, the ink drop can be selected from 6 to 18 pl
Bi-media handle system, supporting both roll-to-roll printing and rigid board printing
Inkjet printing format for 2 meters, thickness up to 5.1 cm
A variety of color configurations, standard 4 colors, white and varnish for option
Double negative pressure system, anti-collision protection, suction platform partition controllable, anti-static device, etc
Wide application solutions for wallpaper, light box , car sticker, acrylic, template, glass, cardboard, etc
Product Parameter
| Pinthead | Piezoelectric inkjet printhead 6pl, Grayscale Technology | ||
| Inkjet speed | KONICA | RICOH G6 | |
| Express mode | 122 ㎡/h | 78 ㎡/h | |
| Production mode | 80 ㎡/h | 58 ㎡/h | |
| Quality mode | 62 ㎡/h | 36 ㎡/h | |
| Resolution | 540*720, 540*1080, 726*720, 726*1080, 726*1440 | ||
| Inkjet technology | On demand piezoelectricity inkjet mode, support gray level printing | ||
| Ink | Using environmentally friendly, beautiful colors, high durability of outdoor LED ink, FLORA UV ink | ||
| Color | 6 Colors： C+M+Y+K+W+V, C+M+Y+K+CM+LM | ||
| Cartidge | 2.5L | ||
| RIP software configuration | Photoprint Flora Edition 12 | ||
| Color control | International standard ICC color control, curve and density user adjustable functions | ||
| File format | Tiff, Jepg, Postscript, EPS, Pdf，etc. | ||
| Media system | |||
| Media loading and moving system | Vinyl, pet, film, blockout, backlit, synthetic paper, banner, etc. | ||
| Easy to load and unload materials, suitable for various sizes of materials | |||
| Matrial specification | The maximum width is 330cm, the diameter is 32cm and the weight is up to 100kg | ||
| Data transmission | |||
| Data interface | High speed USB transmission | ||
| Machine size | |||
| Machine | 790*200*190cm | ||
| Packing box | 810x220x210cm | ||
| Machine weight | 5000KG | ||
| Operating environment | |||
| Temperature | 20-30℃ | ||
| Relative humidity | 35 - 65%, non-condensing. | ||
| Power requirements | |||
| Maximum power | 8000W | ||
| Access parameter | Input voltage: 200 VAC to 240VAC, single phase, 50/60Hz, 50A | ||
| Warranty period | |||
| One year (please consult your local dealer for details) | |||
