DMS220-CR Dust-Free Environment Using Screw Module
DMS220-CR Dust-Free Environment Using Screw Module

DMS220-CR Dust-Free Environment Using Screw Module

Series of products are fully enclosed screw structure, light weight, good rigidity, dustproof design; characterized by fast response, short positioning time, good dynamic performance and high rigidity. This series has complete specifications, including DMS30, DMS45, DMS62, DMS65, DMS85, DMS100, DMS135, DMS150, DMS170, DMS220 series.

Email

cathy@bzd-linearmotor.com

Inquiry Now
Related Product
  • Product Detail
  • Technical parameter
  • Product characteristics
  • File Download

  • Series of products are fully enclosed screw structure, light weight, good rigidity, dustproof design; characterized by fast response, short positioning time, good dynamic performance and high rigidity. This series has complete specifications, including DMS30, DMS45, DMS62, DMS65, DMS85, DMS100, DMS135, DMS150, DMS170, DMS220 series.

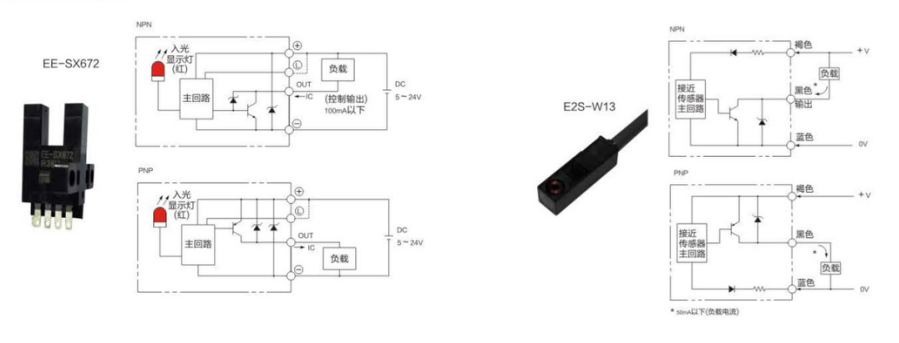

    Sensor Connection Cable

    Motor size and shape



  • Motor Matching List

    Motor Power AC(W)750
    Repeated positioning accuracy (mm)±0.01/±0.005
    Ball screw Outside diameter (mm)25
    Ball screw lead (mm)5 10 25 50
    Maximum speed (mm/sec)Motor speed 3000(rpm)250 500 1250 2500
    Maximum load (kg)Acceleration and decelerationHorizontal use0.3G150 150 120 50
    Vertical use0.3G55 45 20 8
    ★ Rated thrust (N)2100 1050 420 210
    Linear guide (mm)23×18-2
    Origin inductorEE-SX672(NPN)EE-SX672P(PNP)
    Built-in EE-SX951(NPN)EE-SX951P(PNP)

    ★Rated thrust is the thrust at the rated torque of the motor; the mass that can be moved and the maximum speed vary according to the conditions of use; the maximum speed of the motor is 3,000rpm.

  • Basic parameters:
    Standard motor: stepper 86, servo 750W
    Position repeatability: ±0.01mm
    Synchronous belt guide: 5, 10, 25, 50mm
    Speed≤2500mm/s
    Weight: Horizontal use ≤150kg; Vertical use ≤55kg
    Standard effective stroke: 50~1500mm/(50 intervals)
