BZDDM-X200-TY400-DN
BZDDM-X200-TY400-DN

BZDDM-X200-TY400-DN

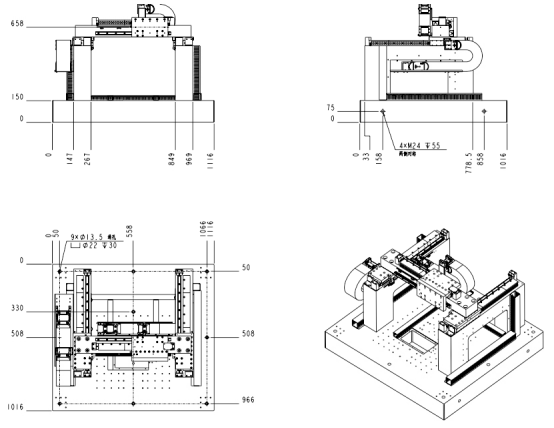

The gantry Double drive platform is a high-precision Kadir double drive gantry system with superior performance for industrial projects requiring high precision and high efficiency such as placement machines, scanning processing, automated assembly and visual observation. Using coreless linear motor, equipped with non-contact grating ruler Full stroke repeatability is less than ±0.5um The positioning accuracy is less than ±1um Excellent dynamic performance and positioning accuracy. The gantry shaft adopts double direct drive structure and has strong driving ability The beam shaft is a single linear motor structure to achieve high-speed scanning

Email

cathy@bzd-linearmotor.com

Inquiry Now
Related Product
  • Product Detail
  • Technical parameter
  • Product characteristics
  • File Download

  • The gantry Double drive platform is a high-precision Kadir double drive gantry system with superior performance for industrial projects requiring high precision and high efficiency such as placement machines, scanning processing, automated assembly and visual observation.



    Using coreless linear motor, equipped with non-contact grating ruler
    Full stroke repeatability is less than ±0.5um
    The positioning accuracy is less than ±1um
    Excellent dynamic performance and positioning accuracy.
    The gantry shaft adopts double direct drive structure and has strong driving ability
    The beam shaft is a single linear motor structure to achieve high-speed scanning

  • Axial directionX-axis

    Y1Y2 axis

    Motor typeZWU-30A-4-S-5M-HALLZWU-30A-4-S-5M-HALL
    Sustained thrust104 N104 N
    Peak thrust576 N576 N
    Sustained current2.54 Arms2.54 Arms
    Peak current14.3 Arms14.3 Arms

    Mechanical parameter

    Axial directionX-axisY1Y2 axis
    Effective stroke200mm400 mm
    load35 kg35 kg X axis
    speed200mm/s200 mm/s
    Repeated positioning accuracy±0.5 um±0.5 um
    Positioning accuracy±1um±1um

  • Product characteristics

    Ac brushless double drive gantry structure

    High repeatable positioning accuracy

    Maximum speed over 2m/s, acceleration over 2G

    High dynamic performance, high precision

    B axis/rotating axis can be configured according to customer requirements

    Travel, size and cable can be customized according to customer requirements

    Structural characteristics

    Using coreless linear motor, equipped with non-contact grating ruler

    Full stroke repeatability is less than ±0.5um

    The positioning accuracy is less than ±1um

    Excellent dynamic performance and positioning accuracy.

    The gantry shaft adopts double direct drive structure and has strong driving ability

    The beam shaft is a single linear motor structure to achieve high-speed scanning

    Customization

    Can be configured according to customer needs, travel, load,

    Special structures are evaluated and customized ⁠⁠⁠⁠⁠⁠⁠
