DMS85-CM Screw Modules for General Environments
The series of products are semi-closed screw structure with light weight and good rigidity; they are characterized by fast response, short positioning time, good dynamic performance and high rigidity. This series has complete specifications, including DMS45, DMS62, DMS65, DMS85, DMS100, DMS135, DMS150, DMS170, DMS220 series.
- Product Detail
- Technical parameter
- Product characteristics
- File Download
-
The series of products are semi-closed screw structure with light weight and good rigidity; they are characterized by fast response, short positioning time, good dynamic performance and high rigidity. This series has complete specifications, including DMS45, DMS62, DMS65, DMS85, DMS100, DMS135, DMS150, DMS170, DMS220 series.

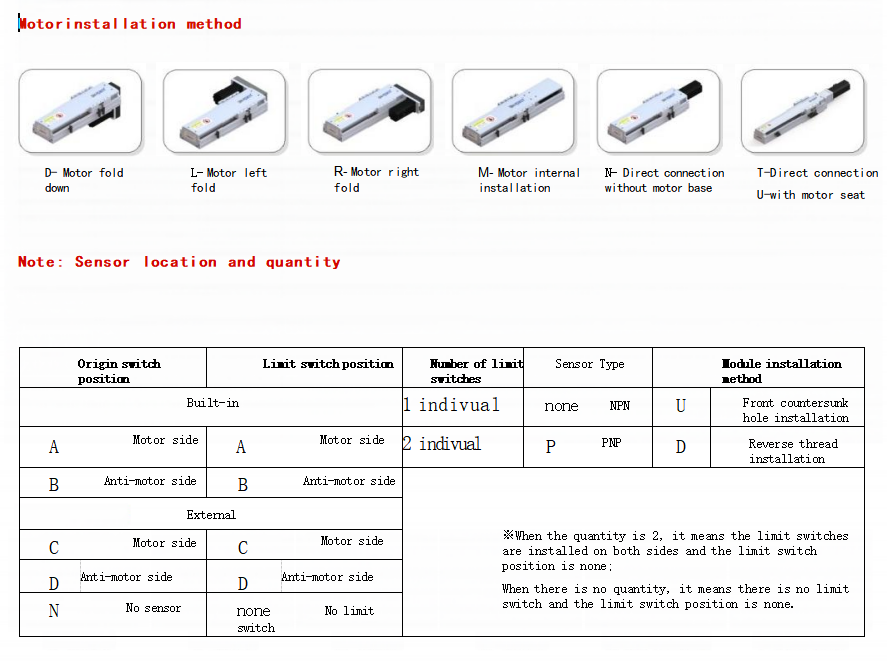

Motor mounting method

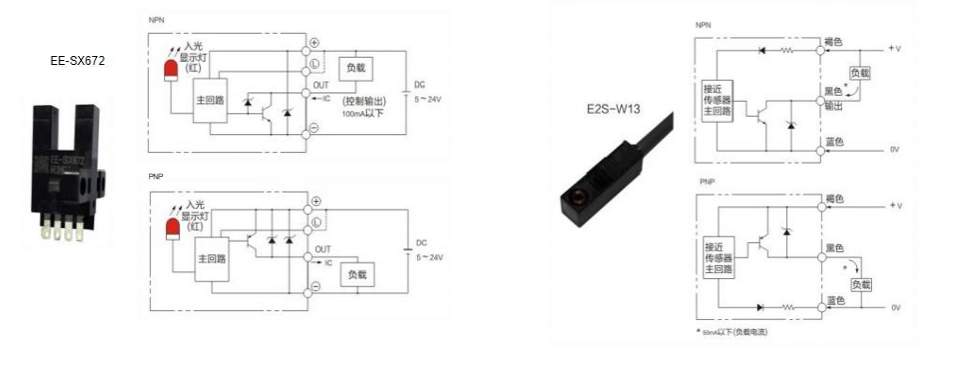

Sensor Connection Cable
Motor size and shape

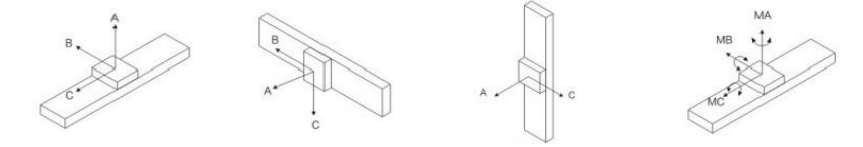

Allowable load moment table
unit:mm unit:：N.m
-
Motor Matching List
Motor Power AC(W) 100/200/400 Repeated positioning accuracy (m m) ±0.01/±0.005 Ball screw Outside diameter (mm) 16 Ball screw lead (mm) 5 10 16 20 32 Maximum speed (mm/sec)
Motor speed 3000 (Max speed (mm/sec))250 500 800 1090 1690 Maximum load (kg) Acceleration and deceleration Horizontal use 0.3G 50/50/50 30/40/50 20/30/40 15/20/30 2007/10/15 Vertical use 0.3G 10/12/151 5/10/12 4/8/12 3/5/8 - Rated thrust (N) 341/682/1364 170/360/720 106/212/424 85/170/340 53/106/212 Linear guide (mm) 20x15.5-1 Origin inductor EE-SX672(NPN)EE-SX672P(PNP) Built-in E2S-W13 ★The rated thrust is the dimensional force at the motor's constant torque; the mass that can be acid-fed and the maximum speed vary according to the conditions of use; the motor's maximum speed is 3000 rpm.
-
Basic parameters:
Standard motor: stepper 57, servo 100/200/400W
Position repeatability: ±0.01mm
Screw lead: 5, 10, 16, 20, 32mm
Speed ≤1600mm/s
Weight: Horizontal use ≤50kg; Vertical use ≤12kg
Standard effective stroke: 50~1050mm/(50 intervals)
