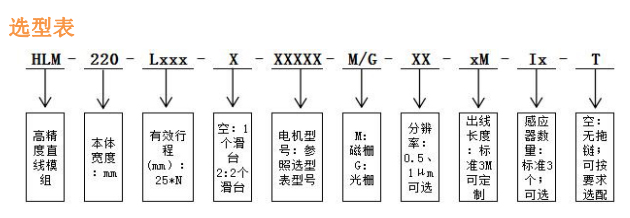

HLM220 series linear motor module
HLM220 series linear motor module

HLM220 series linear motor module

Email

cathy@bzd-linearmotor.com

Inquiry Now
Related Product
  • Product Detail
  • Technical parameter
  • Product characteristics
  • File Download

  • Electrical parameter

    ParameterSlabU-shape
    ModelFA80-109FA80-157FA80-205FA100-109FA100-157FA100-205UI4-61UI4-121UI4-181UI4-241
    Sustained thrust N13820026018226234156112168224
    Peak thrust N47172094864296812933166339361248
    Continuous current Arms3.33.33.13.23.232.3
    Peak current Arms1413
    Pole distance mm2460
    Maximum speed M/S3.5443.54433.544
    Maximum acceleration G3.544.53.54.5533.544

    Module mechanical parameters

    ParameterSlabU-shape
    ModelFA80-109FA80-157FA80-205FA100-109FA100-157FA100-205UI4-61UI4-121UI4-181UI4-241
    Module total height A (mm)96
    Module maximum stroke (mm)4000
    Slide Length B (mm)160170220160170220160160200260
    Effective stroke S (mm)25*N（N=1、2、3......160)
    Avoidance stroke S2(mm)10
    Mounting hole spacing C(mm)70751007075100707090120
    Limit end distance D (mm)22
    Base mounting hole spacing (mm)120

    Note: If special size is required, it can be customized upon request
