BZDDM-DLXY
BZDDM-DLXY

BZDDM-DLXY

OLED cutting /PCB drilling/CNC machining/Biotechnology /C packaging/Wafer inspection... Using coreless linear motor control High load, high precision, large stroke, high rigidity The precision platform is dustproof Centralized oil injection, metal grounding function ⁠⁠⁠⁠⁠⁠⁠

Email

cathy@bzd-linearmotor.com

Inquiry Now
Related Product
  • Product Detail
  • Technical parameter
  • Product characteristics
  • File Download

  • OLED cutting /PCB drilling/CNC machining/Biotechnology /C packaging/Wafer inspection...

    Using coreless linear motor control

    High load, high precision, large stroke, high rigidity

    The precision platform is dustproof

    Centralized oil injection, metal grounding function ⁠⁠⁠⁠⁠⁠⁠

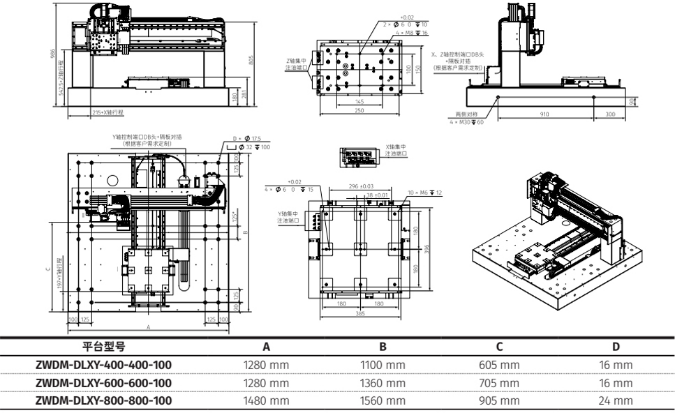

  • Platform typeBZDDM-DLXY-400-400-100BZDDM-DLXY-600-600-100BZDDM-DLXY-800-800-100
    Effective stroke400*400*100600*600*100800*800*100
    Positioning accuracy±2um±2um±2 um
    Bidirectional repeated positioning accuracy±1um±1um±1um
    Tilt15 arc sec20 arc sec25 arc sec
    runout15 arc sec20 arc sec25 arc sec
    roll15 arc sec20 arc sec25 arc sec
    straightness±3 um±5 um±8 um
    Resolution100 nm
    Maximum acceleration1g
    Maximum speed1m/s
    Y-axis load60 KG
    Z-axis load12 KG
    Sustained thrustX-axis221 N
    Y-axis393 N
    P peak thrustX-axis1248 N
    Y-axis2830 N
    Minimum step amount500 nm
    Platform quality1400 kg1500 kg1700 kg
    Platform materialmarble
    Mean time without failure20000 Hours

    Note: The above test data was obtained in a laboratory environment with the test point located 25mm above the center point by a linear amplifier & Renishaw laser interferometer.

  • Product characteristics

    High precision positioning platform

    High performance and low cost

    Modular product

    Flexible configuration

    Quick plug and quick pull, easy to install and debug

    Free to choose itinerary according to demand (accept customization)

    Structural characteristics

    Using coreless linear motor control

    High load, high precision, large stroke, high rigidity

    The precision platform is dustproof

    Centralized oil injection, metal grounding function

    customization

    Larger trips can be customized
