PCB board LDI exposure machine
High precision : advanced laser technology can achieve very high exposure accuracy and resolution, so as to ensure the precision and quality of PCB manufacturing. high efficiency : fast exposure process, improve the production efficiency of PCB manufacturing, shorten the manufacturing cycle. Digital : The digital exposure method can directly generate images from digital files, avoiding multiple intermediate steps in the traditional exposure process and improving work efficiency. Flexibility : can be customized according to different PCB design requirements, suitable for various types of PCB manufacturing, with high flexibility and adaptability.
- Product Detail
- Technical parameter
- Product characteristics
- File Download
-

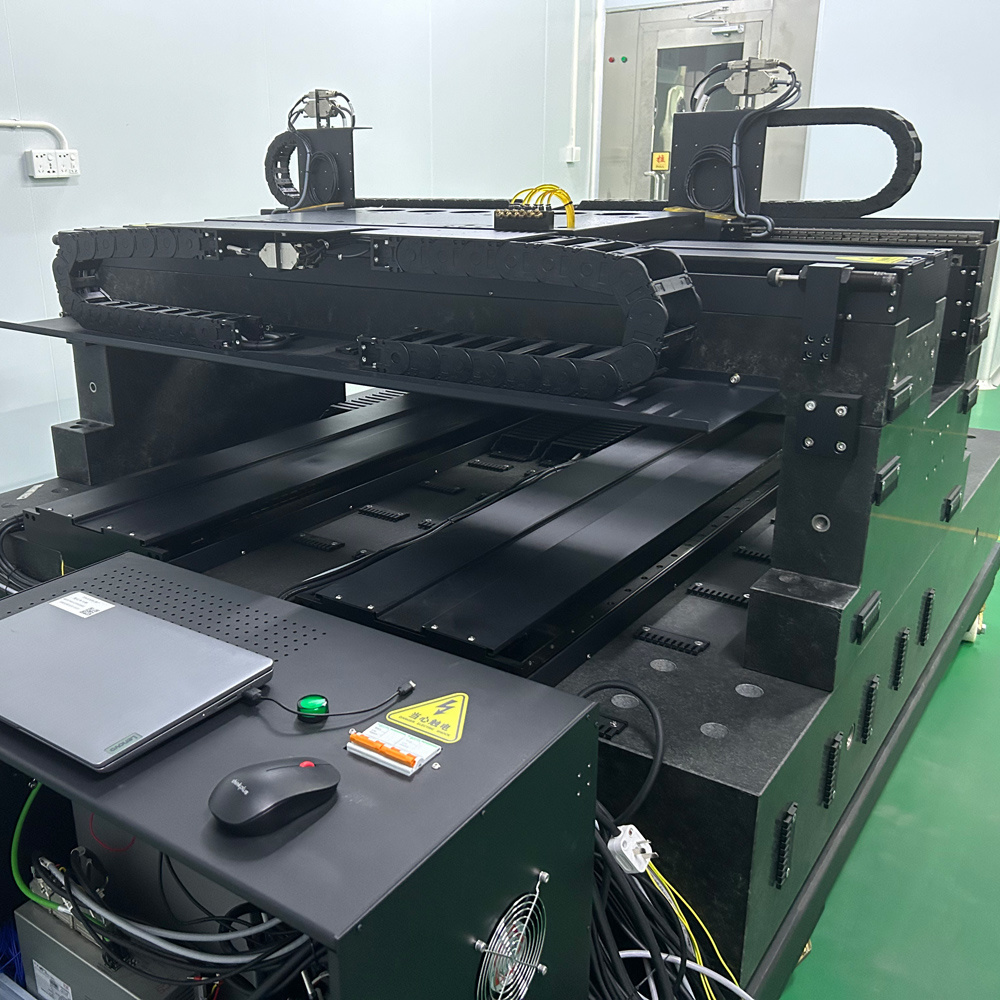

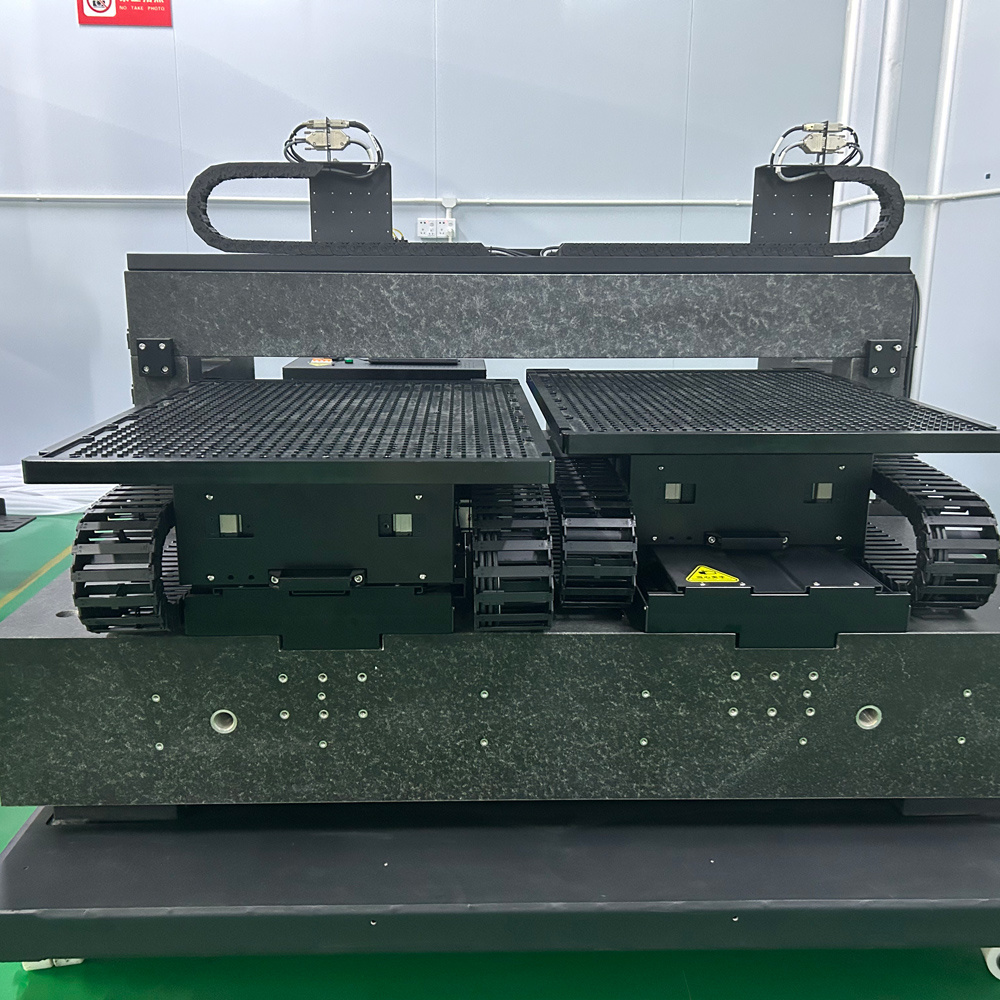

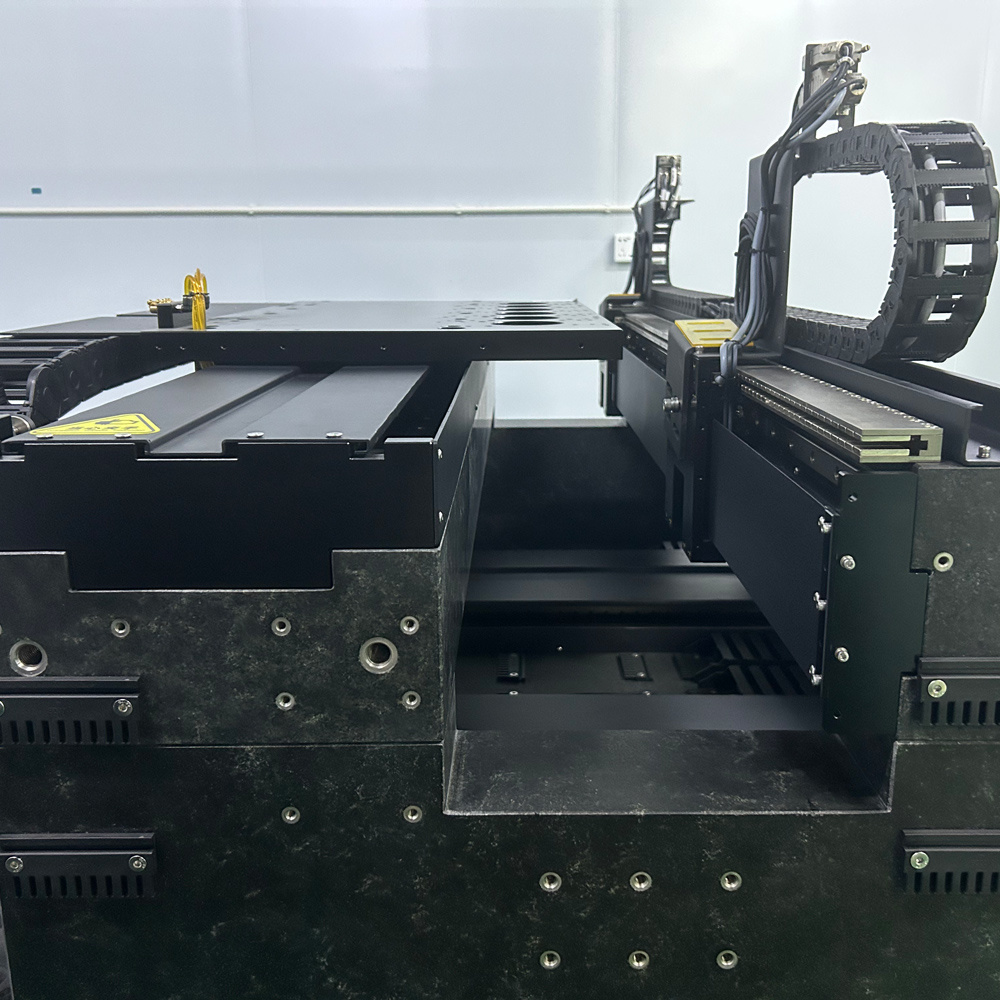

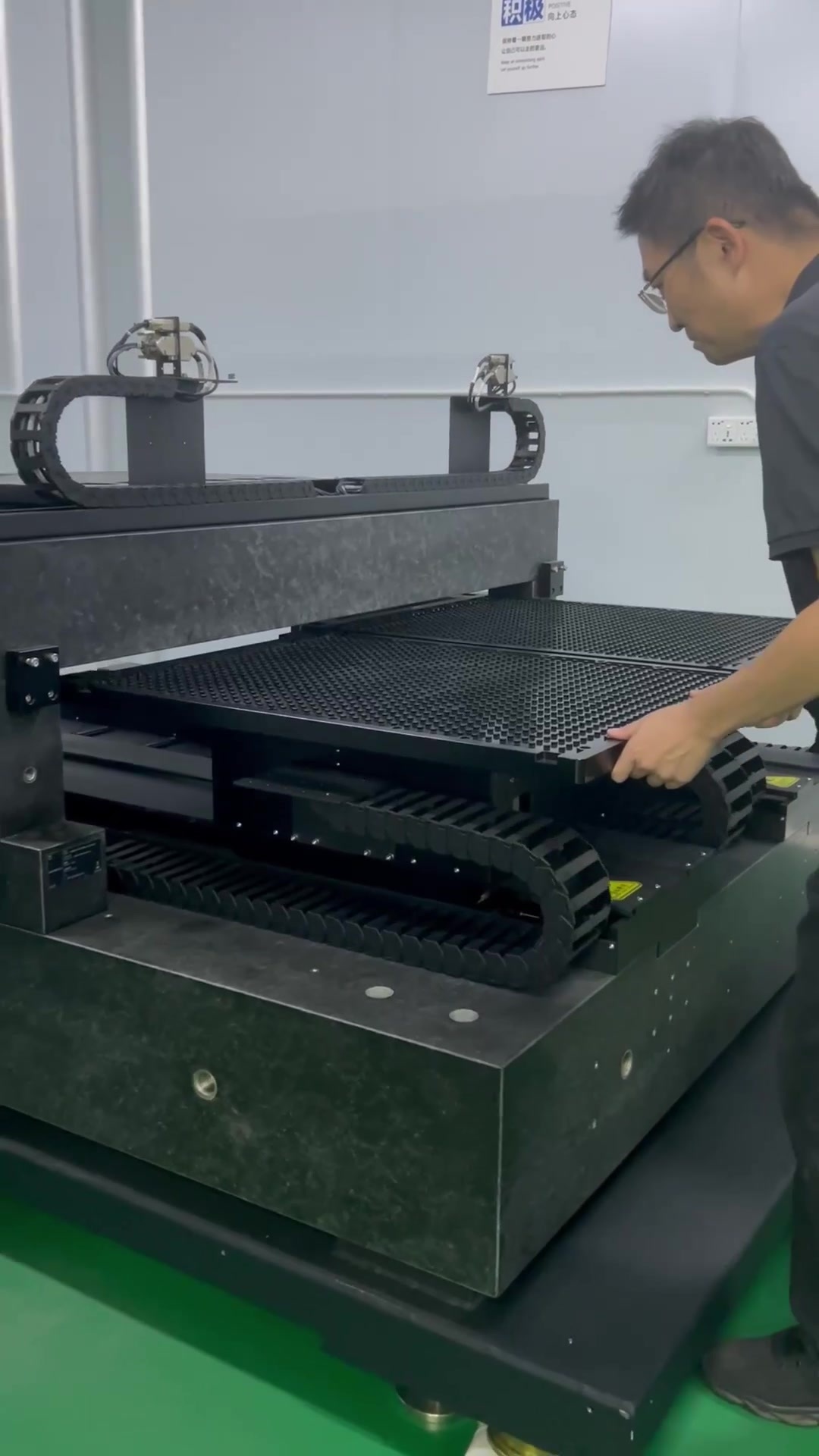

LDI exposure platform and its principle
A laser Direct imaging (LDI) exposure machine is a device used to manufacture printed circuit boards that uses a laser beam to project a circuit pattern onto a photosensitive material to form a pattern of the circuit board. LDI exposure machine has the characteristics of high precision, high speed and high efficiency, which can greatly improve the quality and production efficiency of circuit board manufacturing. At the same time, it can also realize the manufacture of multi-layer circuit boards to meet the needs of different customers.
-
Shafting X-axis Y1/Y2 axis Z1/Z2 axis k-axis Journey 900 mm 1350 mm 20 mm 1195 mm Load 120 kg ≥ 55KG Z-axis weight ≥ 55KG 3 (side hanging) Encoder resolution 0.1 um 0.1 um 20 um 0.1 um Minimum step 0.5 um 0.5 um / 0.5 um Linear positioning accuracy ±2.5 um ±2.5 um ±15 um ±2.5 um Two-way repeatability ±1.5 um ±1.5 um ±8 um ±1.5 um Horizontal straightness ±8 um ±5 um ±5 um ±10 um Vertical straightness ±12 um ±12 um ±5 um ±10 um Yaw 5 arc sec 5 arc sec 20 arc sec ±15 um Pitch 10 arc sec 10 arc sec Distance from the center in the X and Y directions
300mm point at z-axis 20
In the process of mm motion, the Z direction is the most
Large error ± 30um/ Roll 10 arc sec / / ±10 um Yaw ±2.5 arc sec/50mm / / / Pitch ±5 arc sec/50mm / / / -
• Seven-axis LDI exposure machine, all using coreless linear motor direct drive control, no grooving effect, smooth operation at low speed (low speed fluctuation)
• Adopt high precision linear guide rail
• Equipped with non-contact high-precision grating ruler, with very good dynamic performance, positioning accuracy and repeated positioning accuracy
• Select high-precision grating position feedback
• Full stroke repeatability is less than ±1.5um
• Positioning accuracy is less than ± 2.5um
• Generally works with high-precision lifting axis (Z-axis)
• Can be customized according to customer requirements configuration, travel, load, special structure, etc
