Wick detection
· Precision linear guide rail · Coreless motor · High speed stability · Taking into account large travel, high precision, heavy load · Large detection format · Can customize a variety of models from small generation to large generation
- Product Detail
- Technical parameter
- Product characteristics
- File Download
-

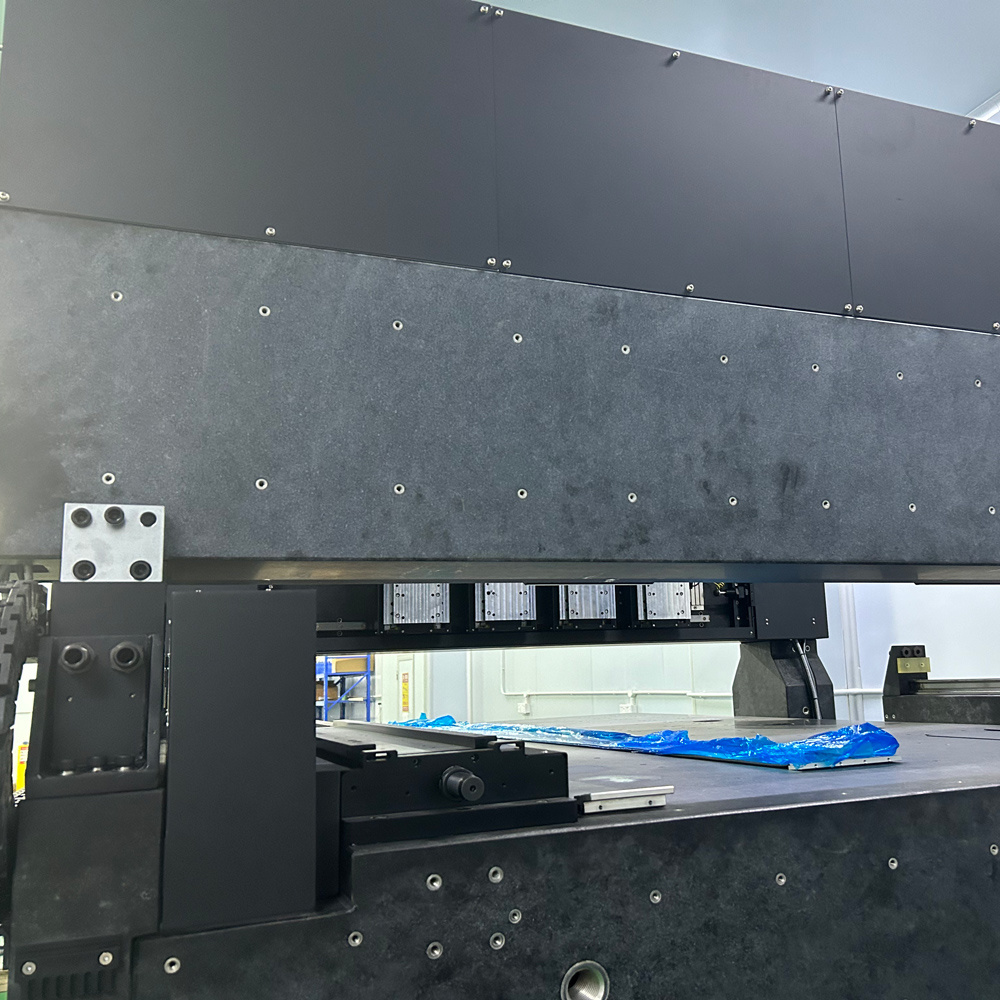

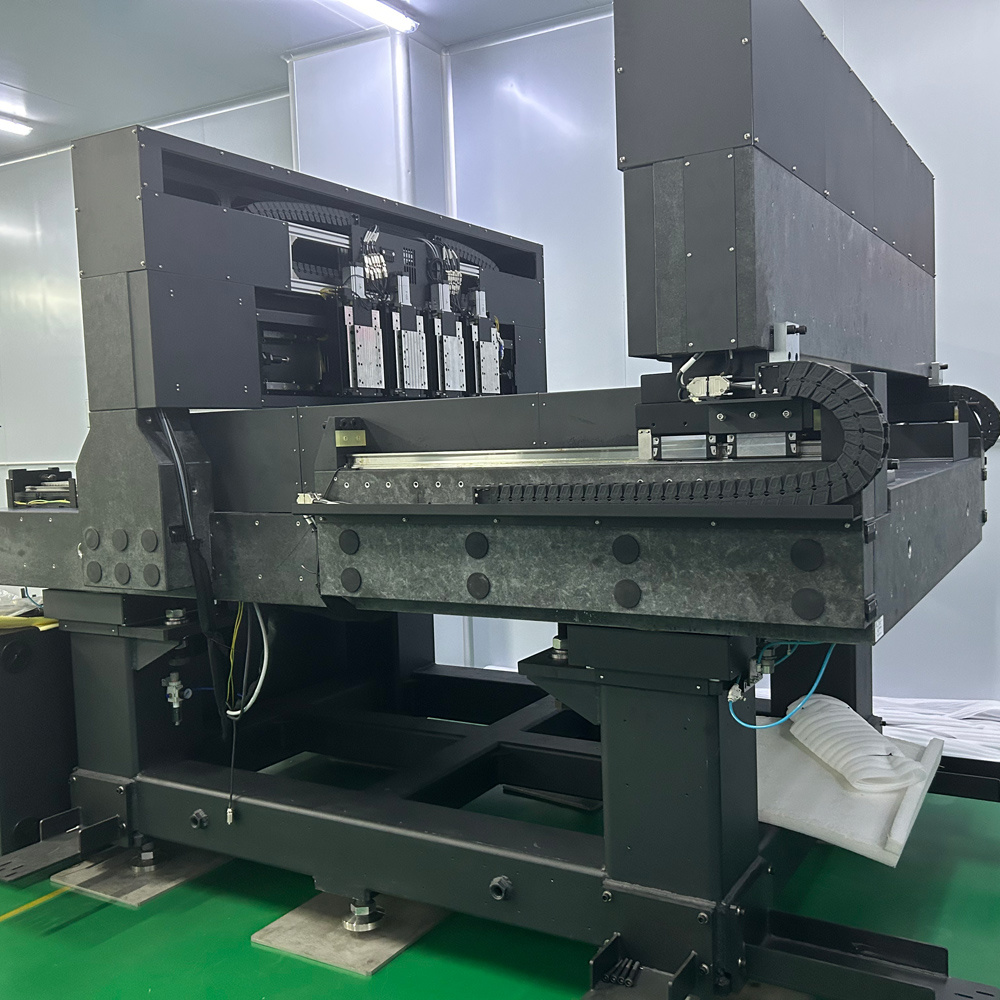

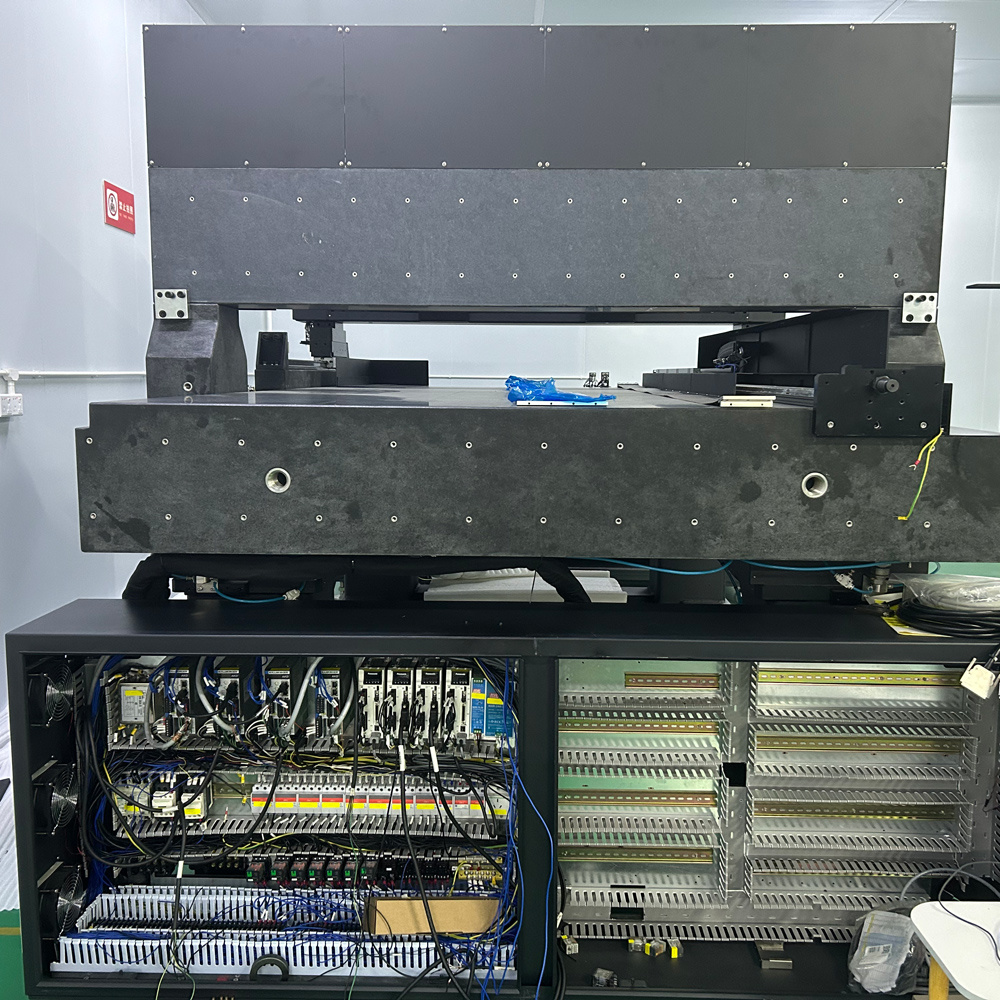

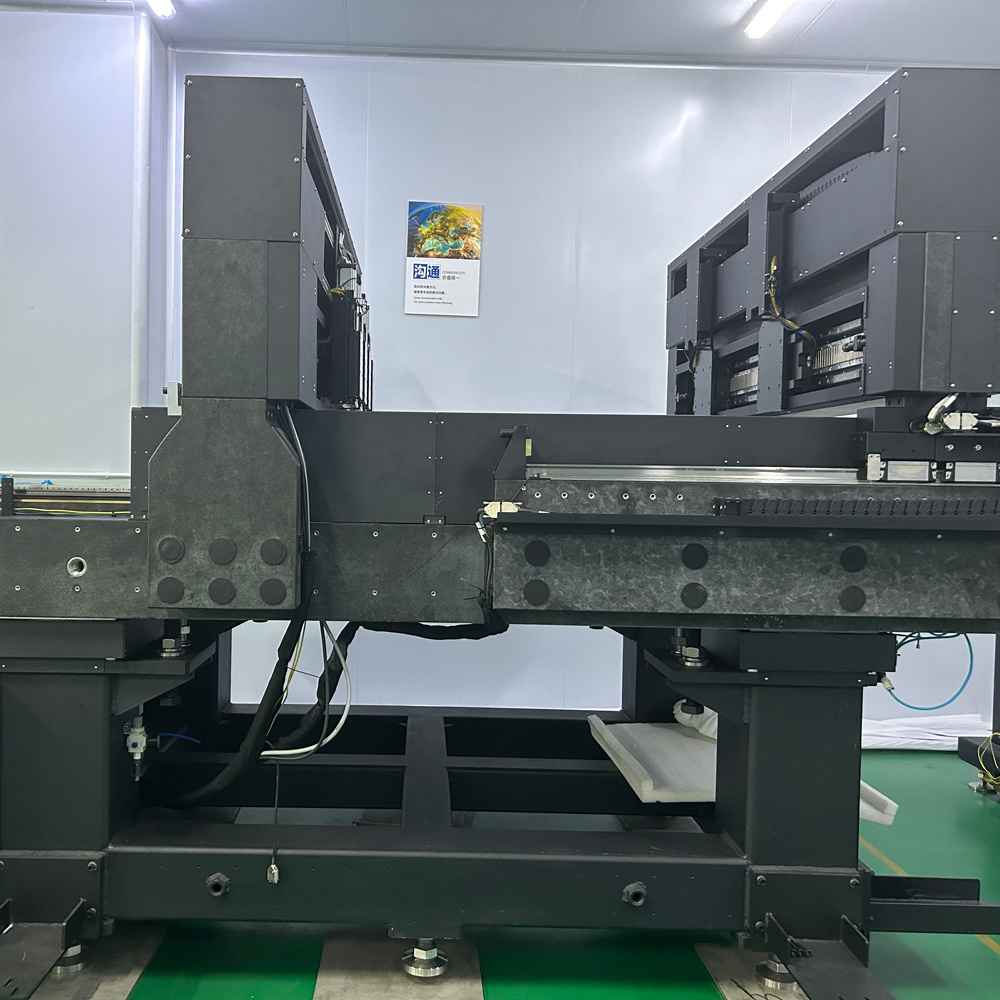

LED wick detection platform and its principle
LED wick testing platform is an important equipment for quality testing of LED panel. It ensures that the appearance, performance and reliability of LED panel meet the standard through a series of technical means. These platforms usually include key components such as racks, LED light boards, optical components, vacuum rods and positioning rods, which can realize the appearance detection of liquid crystal panels of different sizes, and have the characteristics of good versatility and high detection efficiency. -
Axial direction X0 axis Y0 axis Y1 axis Z0 axis Z1 axis Load 30 kg 12 Kg 12 kg 30 kg 12 kg Positioning accuracy +/- (3+L/250) um +/- 15 um +/- 15 um 12 mm 12 mm Minimum Minimum Journey 2050mm 1400mm 1400mm - - Straight axis length 3140 mm 2000mm 2000mm - - Length of slide 890 mm 230 mm 230mm - - Resolution 5 nm or better 0.1um or better 0.1um or better 0.2 um 0.2 um Acceleration 0.5G (Average)@ 66.7% Jerk 0.5G (Average)@ 66.7% Jerk 0.25G (Average)@ 66.7% Jerk 50 mm/sec^2 50 mm/sec^2 Speed 1000 mm/s(Max) 1000 mm/s (Max) 1000mm/s (Max) - - Velocity fluctuation 0.2% Max @Velocity = 400mm/s - - - - Repeated positioning accuracy +/-1 um +/-1 um +/-1 um +/- 1 um +/- 0.1 um Vertical straightness +/-15 um +/-10 um +/- 12 um over full range - - Horizontal straightness +/- 2 um over
200mm+/- 15 um
over full range+/-10 um +/- 10 um - - Setting time 200 msec @ 0.2um p-p 200 msec @0.2um p-p 200 msec @0.2um p-p - - -
• Gantry structure, high stability
• Low Abbe error
• Compact platform structure with strong driving capability
• Can be customized according to customer requirements configuration, travel, load, special structure, etc
