XYZ AOI test platform

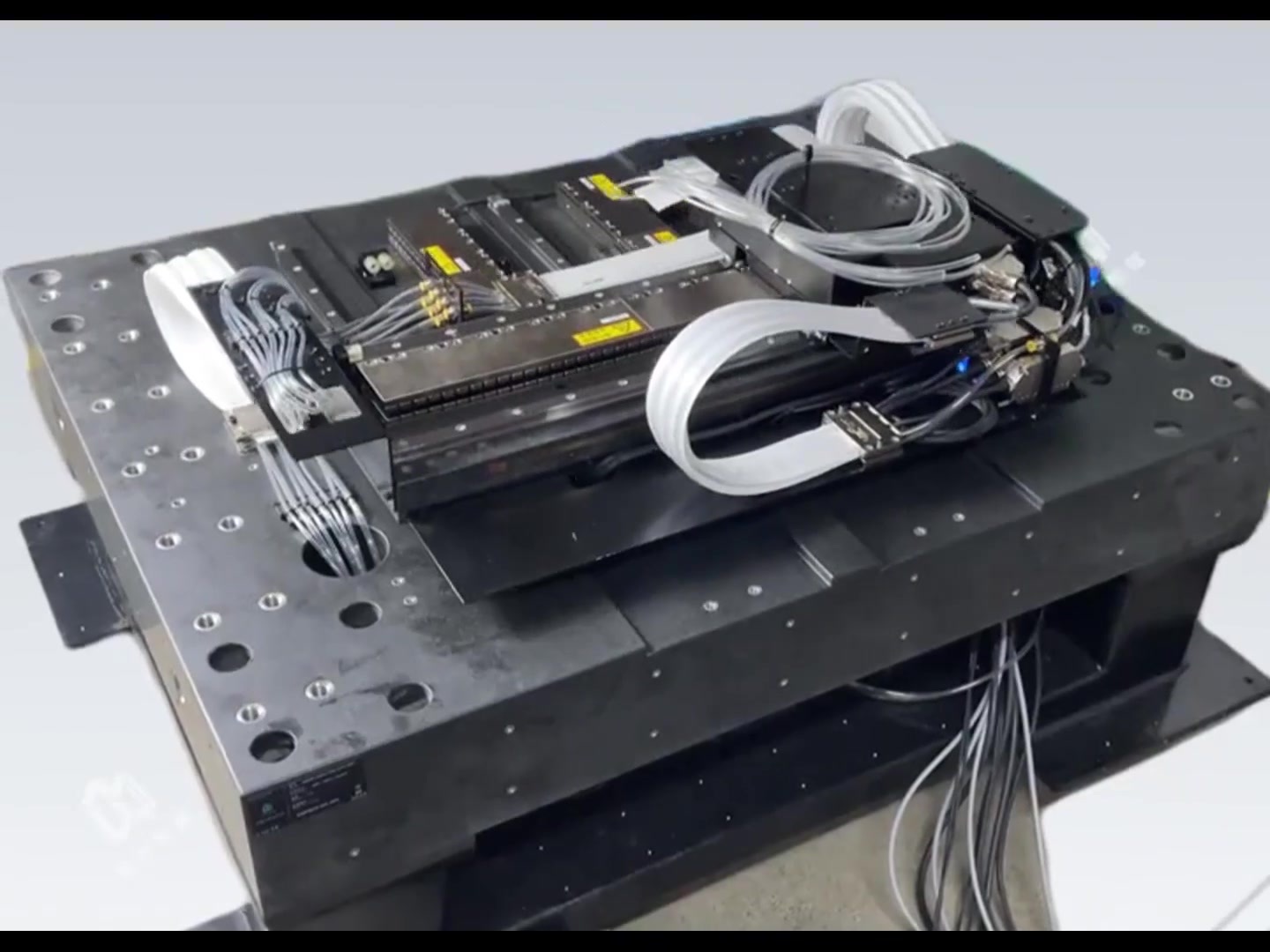

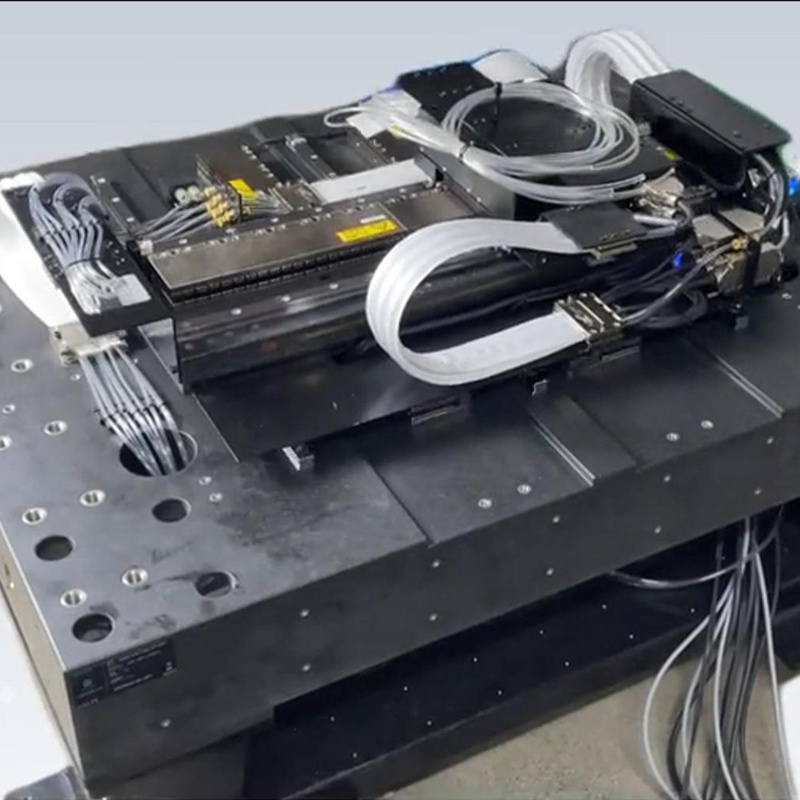

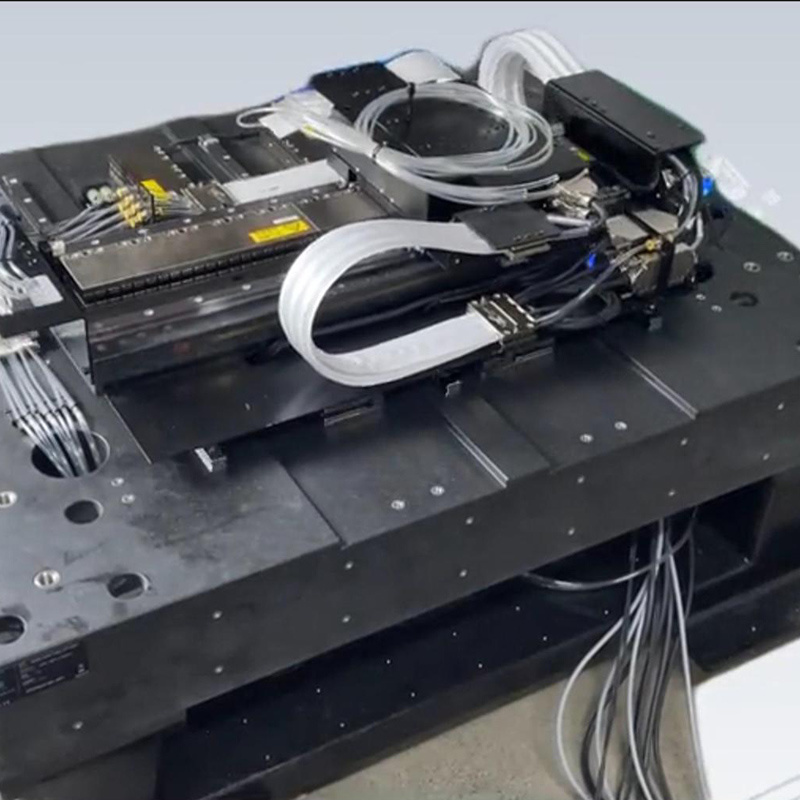

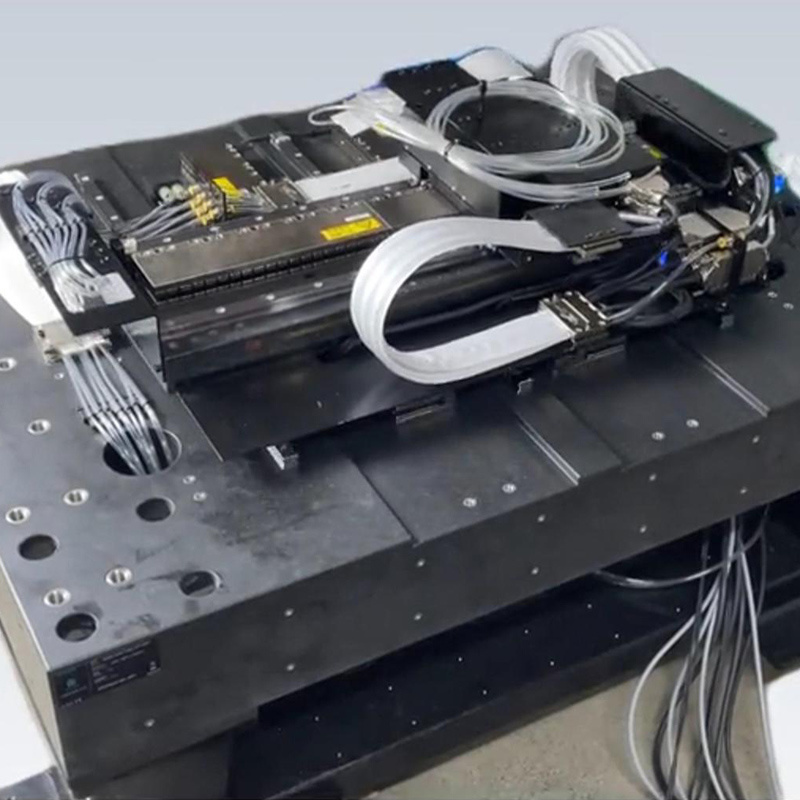

• XYZ superposition structure, no core linear motor direct drive control, no grooving effect, smooth operation at low speed (low speed fluctuation) • At the same time, it is equipped with non-contact high-precision grating ruler, which has very excellent dynamic performance, positioning accuracy and repeated positioning accuracy • XY axis laminated structure, marble base, high steady state, Z-axis direct drive flat lift structure, direct moving load lifting, built-in balance cylinder, stroke 10mm
- Product Detail
- Technical parameter
- Product characteristics
- File Download
-
XYZ AOI detection platform and its principle
The number of components in the integrated circuit board is increasing, and the volume of a single component is getting smaller and smaller, and the requirements for the speed and efficiency of detection are getting higher and higher. AOI automatic optical inspection, that is, through the optical system imaging to achieve automatic detection, the core technology point is to obtain accurate and high-quality optical images and processing. Customized AOI solutions are widely used, in addition to the inspection of PCB panels, but also in many scenarios, such as semiconductors, battery products and electronic components inspection. -
Shafting X-axis Y-axis Z-axis Motor type BZDU-30B-3 BZDU-30B-3 (Double action) - Sustained thrust 153 N 153 N 23 N Peak thrust 884 N 884 N 170 N Sustained current 2.54 Arms 2.54 Arms - Peak current 8.84 Arms 8.84 Arms - Effective stroke 500 mm 400 mm 10 mm Load Z-axis 5.5 kilograms Z axis X axis 5.5 kg 5.5 kg Maximum speed 600 mm/s 600 mm/s 100 mm/s Working speed 200 mm/s 100 mm/s 100 mm/s Vertical straightness ±2 um ±2 um ±2 um Acceleration 0.6 g 0.6 g 0.3 g Repeatability ±1 um ±1 um ±1 um Positioning accuracy ±2 um ±2 um ±2 um Horizontal straightness ±2 um ±2 um ±2 um PITCH ±5 arc sec ±5 arc sec - YAW ±5 arc sec ±5 arc sec - Orthogonality ±5 arc sec Z-axis corresponding frequency 3um@ 230nm@50Hz Installation mode Horizontal installation -
• Three-axis direct drive structure design
• Z-axis direct drive flat lift structure
• Z-axis built-in pneumatic balance configuration, maximum load 10kg
• XY adopts high precision linear guide, Z-axis adopts anti-creep cross roller guide
• XY with marble base
• Can be customized according to customer requirements configuration, travel, load, special structure, etc
